Enhancing Ablution Pool Filtration
at Masjid Lapangan Terbang Subang
Context and Motivation
Maintaining the cleanliness and hygiene of ablution pools in mosques is crucial for ensuring a pure environment for worshippers performing Wudu (ablution).
However, traditional cleaning methods often result in significant water wastage and labour-intensive maintenance routines. Recognizing these challenges,
Waterco approached Jabatan Agama Islam Selangor (JAIS) to sponsor the installation of the WuduPure system in a mosque in need.

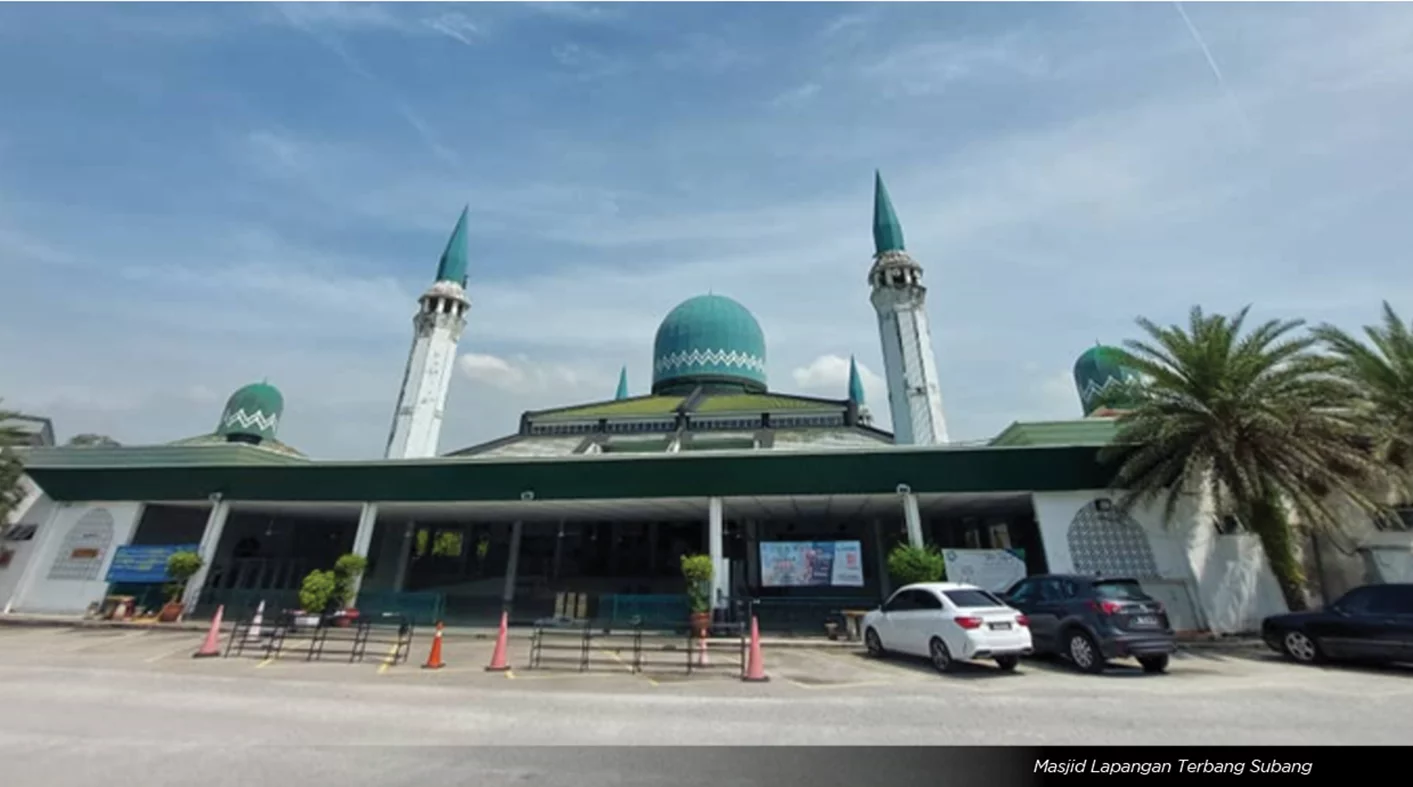

Accordingly, JAIS nominated Masjid Lapangan Terbang Subang, where the mosque committee had raised concerns about debris accumulation and excessive
water use during cleaning. The responsibility of installing the WuduPure system at Masjid Lapangan Terbang Subang fell on the capable hands of AS Engineering Sdn Bhd.
The WuduPure System – Dissecting Each Component
The filtration system comprises the following components
1. Hydrostorm ECO-V 100: An energy-efficient pump designed to deliver optimal water flow with minimal
energy consumption, thanks to its advanced impeller and diffuser design. Built for durability, it features a
single-piece strainer pot and volute made from state-of-the-art engineering plastics, ensuring long-lasting
performance and reduced maintenance. In addition, at its low-speed setting, the Hydrostrom ECO-V operates
with a significantly reduced noise level.
2. Solclear 150 UV Steriliser: A UV sterilization unit that effectively eliminates harmful bacteria and
microorganisms from the water through environmentally friendly ultraviolet technology, without
needing any addition of chemical compounds.
3. Glass Pearl Filter Media: A high-performance filter medium made from 100% pure glass, providing
exceptional water clarity and filtration efficiency. Glass Pearls are also capable of filtering particles as
small as 3 microns. Its smooth surface greatly reduces backwashing water usage by up to 20%, saving
both precious time and water.
4. Inline Strainer: A pre-filtration device that captures larger debris, reducing the load on the main
filtration system.
5. Micron Fibreglass Filter: A robust media filter designed for high-capacity filtration, ensuring clean
and clear water in the ablution pool. Its construction using advanced filament winding technology provides
exceptional durability and resistance to corrosion, UV light and fire,making it an ideal solution for
high-use environments.
The WuduPure Edge: Features and Benefits
The WuduPure system offers several noteworthy advantages, addressing the specific needs of Masjid Lapanga Terbang Subang:
• Efficient Filtration: The Hydrostorm ECO-V 100 pump, coupled with the Micron filter, ensures that the ablution pool water is continuously filtered
and circulated. This combination maintains optimal water clarity and quality by removing debris and contaminants effectively.
• UV Sterilization: The Solclear UV steriliser uses environmental-friendly ultraviolet technology for the disinfection of water, without requiring any
addition of chemical compounds. Therefore, Solclear can sterilise water safely and efficiently, eliminating any infection-causing microorganisms.
• Superior Filter Medium: The Glass Pearl filter medium provides exceptional filtration performance, trapping fine particles and enhancing water
clarity. Its spherical shape also reduces backwashing frequency, considerably saving water and maintenance efforts.
• Debris Management: The Inline Strainer captures larger debris before it enters the main filtration system, thereby reducing the filtration load.
Not only does this protect the main filter in the long run, but it also ensures smoother, more efficient operation.
Project Success and Client Satisfaction

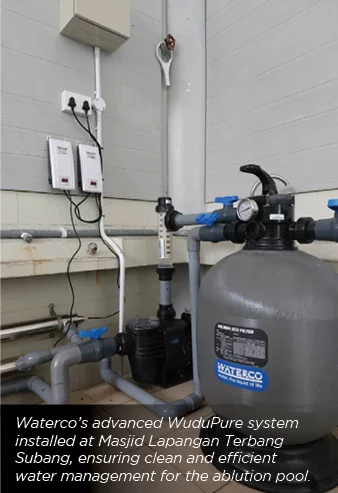

Following the installation of the WuduPure system by AS Engineering, the committee at Masjid Lapangan Terbang Subang has reported significant improvements in the
maintenance and cleanliness of the ablution pool. They highlight that the advanced filtration system greatly reduces the amount of water required for cleaning, aligning
with the mosque’s goal of minimizing water wastage. The combination of mechanical filtration and UV sterilization ensures that the water remains clean and free from
contaminants, providing a safe environment for worshippers.
Additionally, the efficient operation of the WuduPure system reduces the frequency and effort needed for pool maintenance, allowing mosque staff to focus on other
important tasks. Overall, the committee expresses their satisfaction with the outcome, noting that the WuduPure system effectively addresses their concerns about water
usage and pool cleanliness. They commend Waterco for providing a solution that not only meets but exceeds their expectations, ensuring a clean and hygienic ablution facility
for all fellow worshippers.
